How to Install the battery into the CM-BA100



Step 1 : To take off the back cover

1) Push the  No. 1 red arrow to disengage the hook

2) After the hook is disengaged, pull the back cover in the direction of the No. 2 red arrow

步驟1 : 依照下圖指示 1 & 2 將後蓋拆下

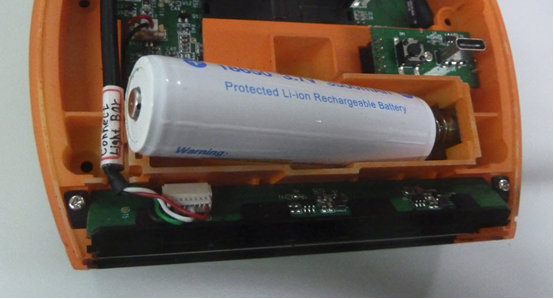

Step 2 : Before you install the battery, please check if the thermistor is available on the plastic shrapnel, then install the battery into the socket.

步驟2. 裝電池前，請先確認熱敏電阻在塑膠彈片上。 之後再安裝電池上去.







Step  3 : Install the back cover then make sure the hook is closed as following photo showed.

步驟 3 :  把背蓋安裝上去, 並且確認卡勾已經卡好.

Step 4 :  Lock 6pcs  self-tapping screws ( 2.0 x 8mm ). Suggest to use torque 2.5+-0.1kgf. cm.  Then install those screw plugs

步驟 4 : 鎖上6顆2.0*8mm自攻螺絲，建議扭力：2.5±0.1kgf.cm，鎖好之後, 裝上螺絲塞。

                                       電池規格:  18650 , 3.7V, 3350~3500mAH , 內含保護電路板的充電鋰電池

                               Battery Specification : Protected Li-ion Rechargeable Battery 18650, 3.7V, 3350~3500mAH
