Features

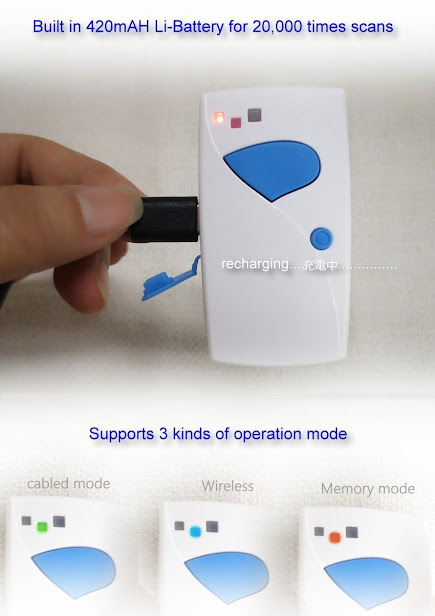

Ø Ergonomic and lightweight Ø 8Mb memory capacity can store about 60,000pcs data Ø Real-time clock which can output with timestamp Ø Low power consumption design, per fully charged can afford 20,000~21,000 scans. Ø 2 in 1 function ( cabled/memory ) or 3 in 1 function ( cabled/memory/wireless ) Ø Support DataBar ( GS1 )
Model No.	CM-201M	CM-201W1	CM-201LM	CM-201LW1
Description	CCD/memory-2 in 1	CCD/Wireless-3 in 1	Laser/memory-2 in1	Laser/Wireless-3 in1
Microprocessor	32 bits CPU
Supported barcode symbologies(1D)	EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC Add-on, Code-39, Code-32, UCC/EAN/Code-128, Industrial-25, Interleaved-25, Matrix-25, Codabar/NW7, MSI/Plessey, Code 93, GS1databar
Main battery	Built in Rechargeable Li-polymer battery pack.,(3.7V, 420m AH)
Operation times (5 sec./ 1 time )	About 21,000 scans	About 20,000 scans	About 21,000 scans	About 20,000 scans
Charging method	Recharging Li-polymer battery pack via USB port or AC adapter
Light source	620nm Red LED lamp.	620nm Red LED lamp.	650nm visible laser diode	650nm visible laser diode
Good Read Indicator	Vibration/LED/Buzzer
Scan rate	200 scans/sec	200scan/sec	120 scans/sec	120 scans/sec
Wireless Communication	None	BLE 5.0	None	BLE 5.0
Decode rate	100 decode/sec
Min. PCS value	0.45
Setting Way	By user manual or utility ( support windows OS on PC )
Operation Temp.	-10 ~ 40 ℃
Storage Temp.	-20 ~ 60 ℃
Interface	USB 2.0 ( USB type C connector)
User Flash ROM	8Mb, can save about 60,000pcs EAN13 with time stamp by 40 digits
Real time clock	Quartz RTC, Time & Date programmable
Keys	1 scan button, 1 clear button
LED indicator	3 color LED (green, red, blue) for mode, 2 color LED ( green/red ) for good read, 1 red LED for low battery
Cable	Type C USB cable , 100cm ( attachment A ) – for recharging / communication
Operation Power	About 125mA	About 113.6mA	About 92.3mA	About 87mA
Stand by	1.4~9.3mA	3.5~10.7mA	1.3~9.5mA	4.7~10.1mA
Vibration indicator	1 vibration motor for good read . Enable/disable programmable
Dimension	(L x W x H) 68.7 x 37.1 x 21 mm ( Attachment B )
Weight	37.2g	37.9g	39.3g	41g
Safety Standard	FCC Class A , CE, VCCI
Optional accessory	Model No. A306-C Bluetooth USB dongle ( can work with windows OS on PC )
